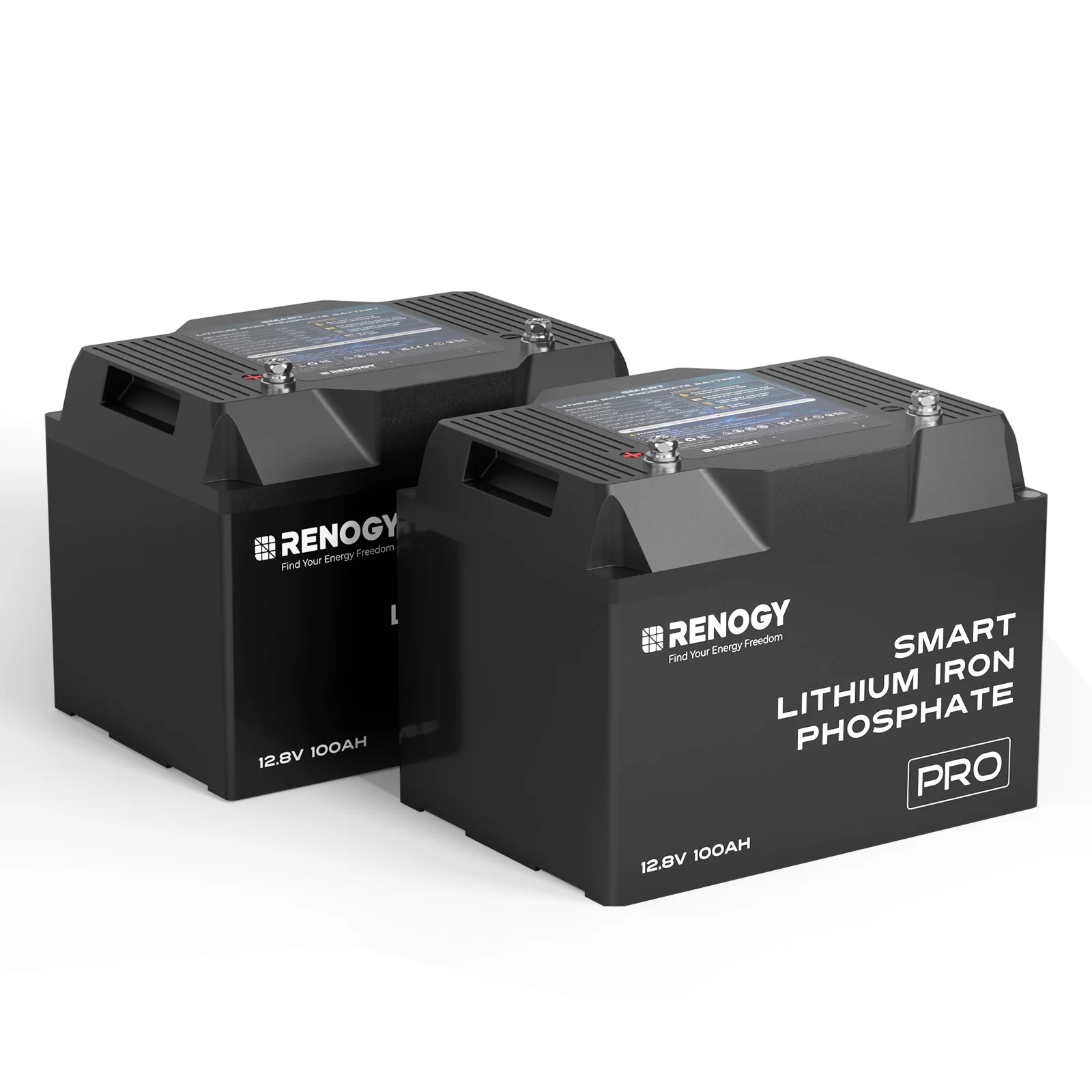

12V 100Ah Lithium Iron Phosphate Battery with Bluetooth & Self-Heating Function | Pro Series
12V 100Ah Lithium Iron Phosphate Battery with Bluetooth & Self-Heating Function | Pro Series

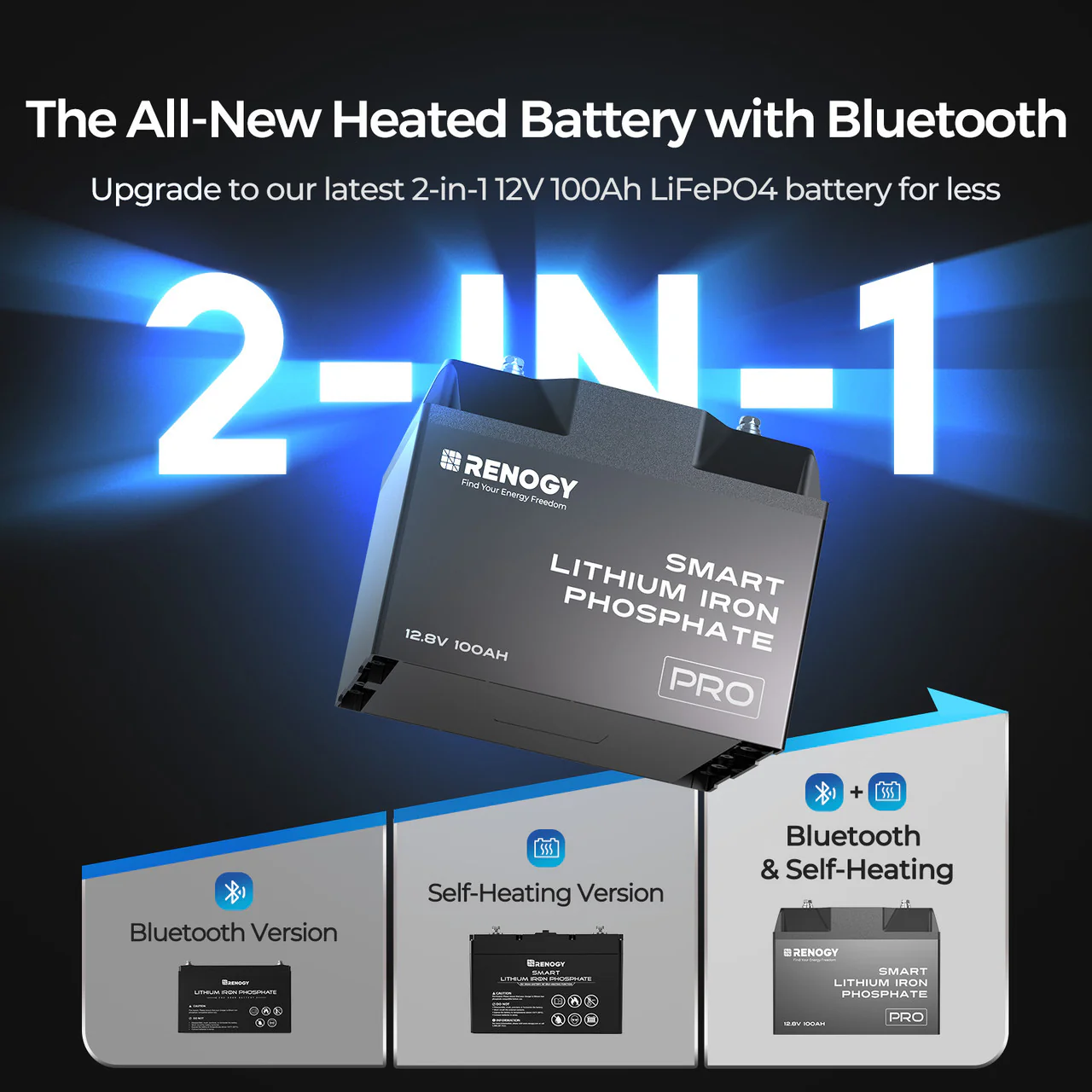

2-in-1 12V 100Ah LiFePO4 battery with self-heating and Bluetooth.
Double active protection system ensures maximum safety for your battery.

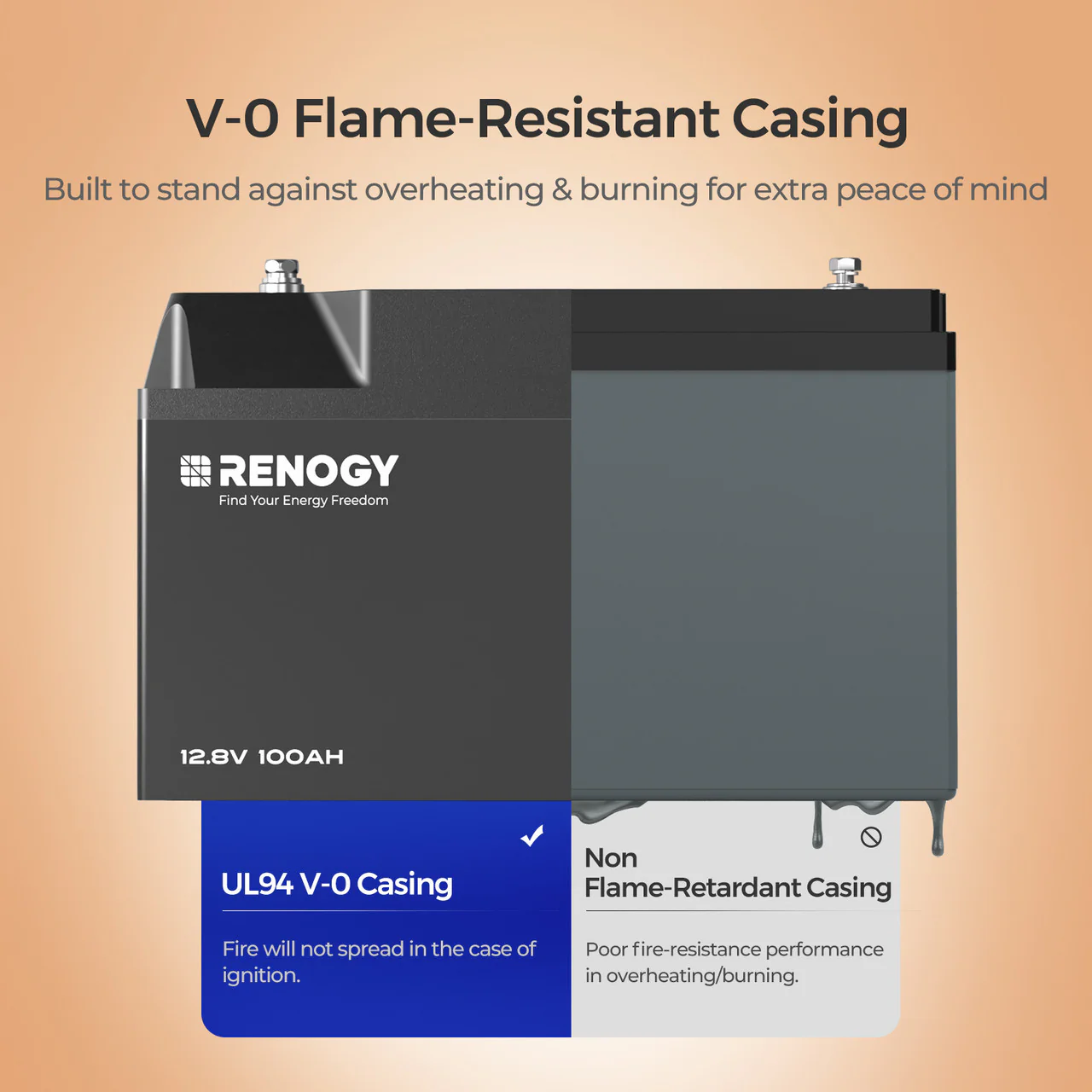

Flame-retardant casing prevents vertical burning within 10 seconds.

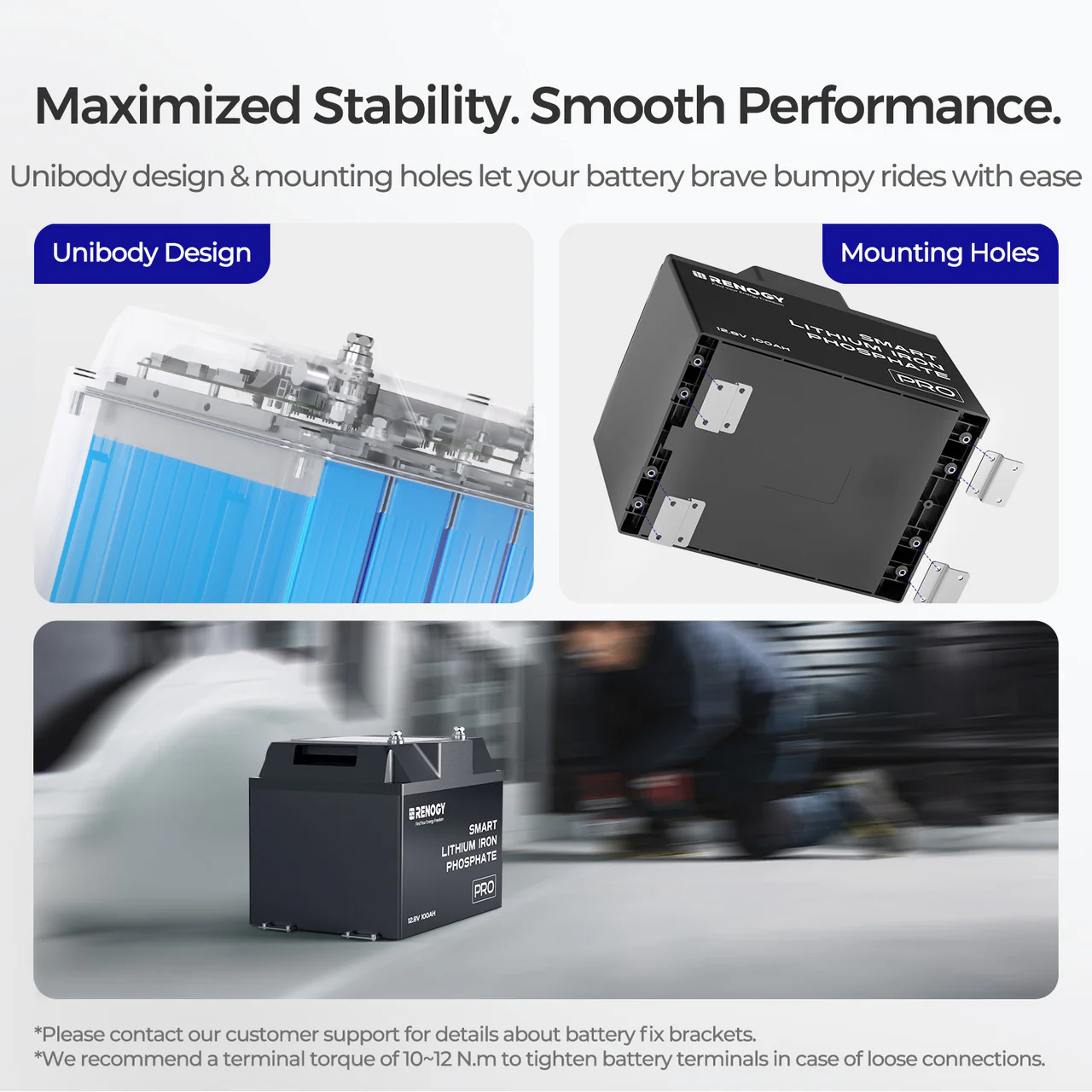

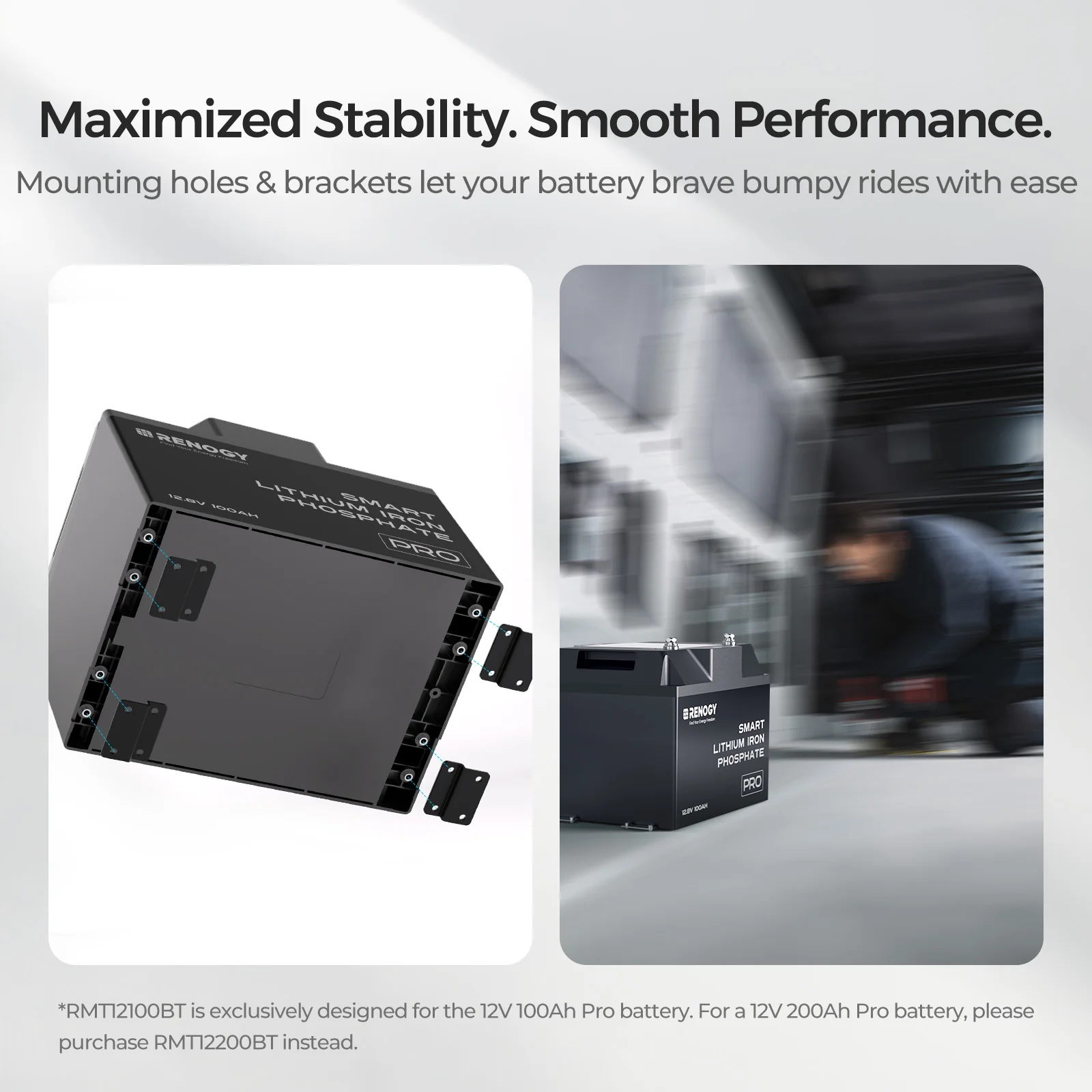

Includes mounting holes and brackets for secure install and stability.

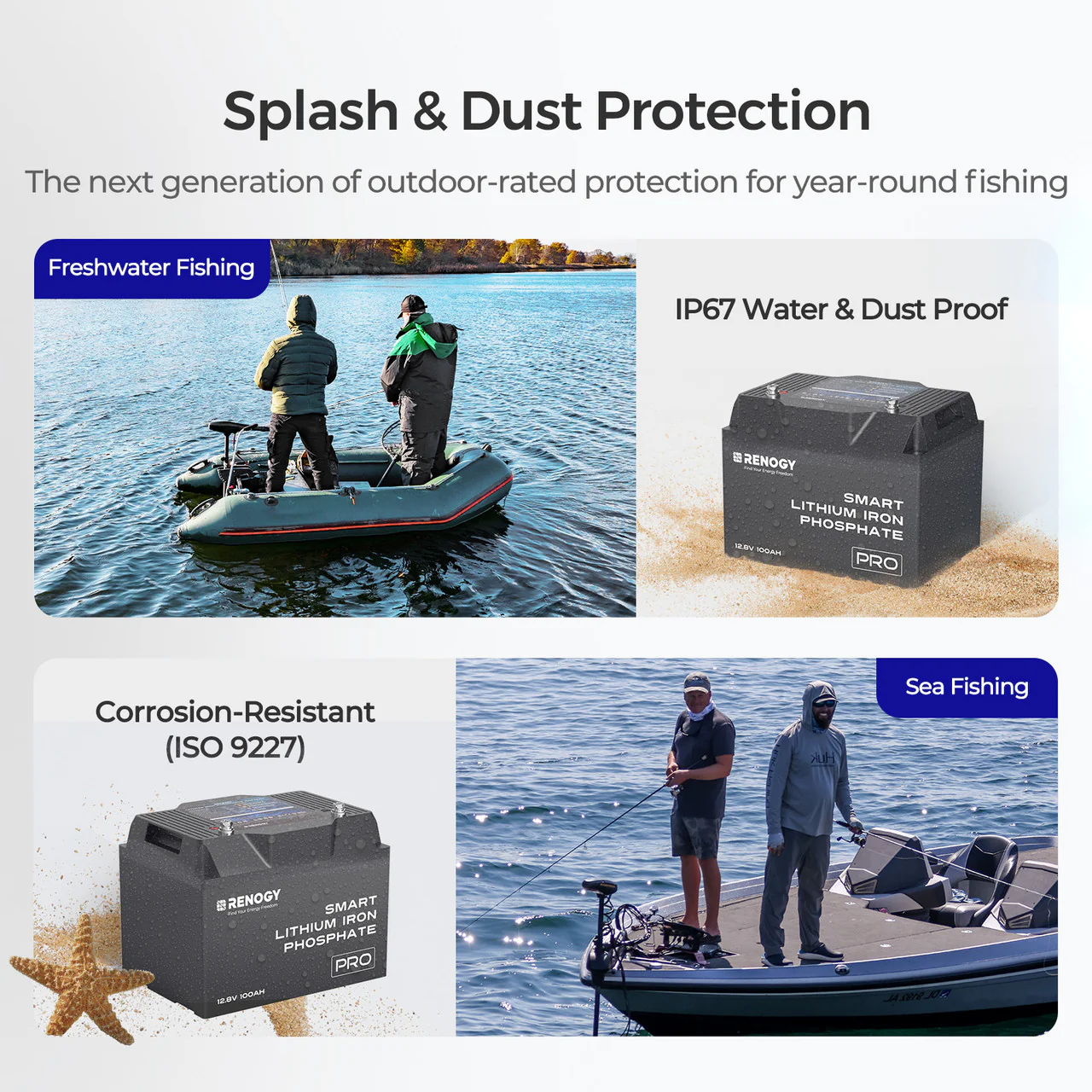

Waterproof, dust-proof (IP67), and corrosion-resistant (ISO).
Renogy 12V 100Ah Pro Series LiFePO4 Battery is set to revolutionize how you experience remote living and adventures by providing unmatched safety, reliability, and convenience in all conditions. Whether you're in the wild or on the water, this battery is your dependable power companion. With a double active protection system consisting of over 60 BMS protections and active backup protection, it goes above and beyond to safeguard your power supply. Its self-heating feature and the UL94V0 fire retardant rating ensure reliable performance in all weather conditions. The battery's rugged structure and mounting holes make installation a breeze, and it's built to withstand the toughest challenges in a bumpy ride. Boasting an IP67 rating and ISO 9227 corrosion resistance certification, it's perfect for fishing, boating, and other marine applications. Plus, the 100Ah Pro Series battery is equipped with Bluetooth for intuitive energy monitoring, and OTA updates to ensure your battery is always at its best.
Better Safe than Sorry
According to UL Solutions' Lithium-ion Battery Incident Reporting, over 9,000 lithium battery-related incidents have occurred globally. As the use of lithium batteries grows, so does the rise in incidents leading to injuries and fatalities. It's more critical than ever to understand the risks and take proactive steps to prevent accidents caused by misuse.

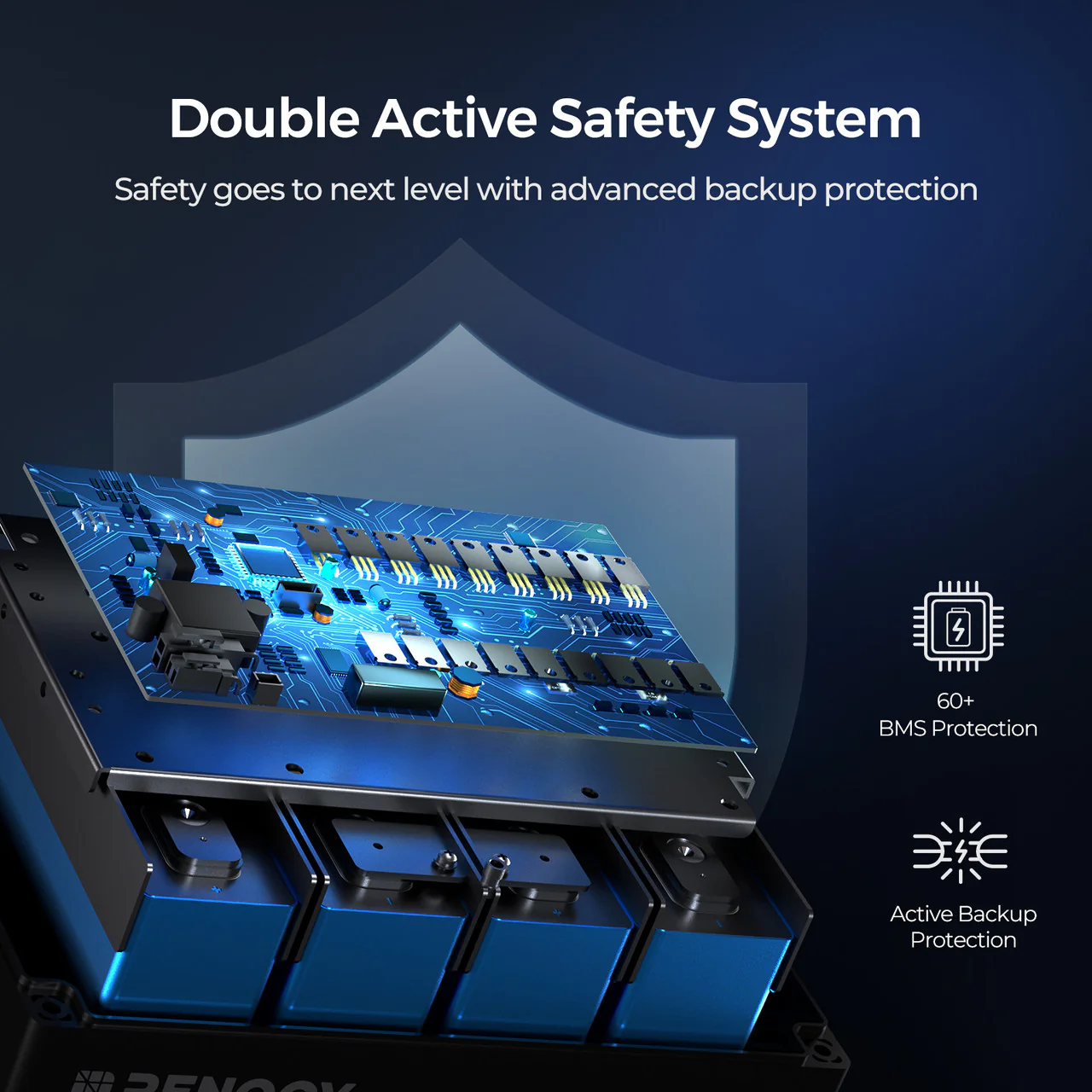

Double Active Safety System
Designed to safeguard devices, properties, and individuals in an all-around way, the all-new 12V 100Ah Pro Series LiFePO4 Battery combines software and hardware security to avoid incidents actively.
Primary Safety: 60+ EV-Grade BMS Protection
The automotive-grade battery management system (BMS) in the 12V 100Ah Pro battery offers over 60 protection mechanisms and alerts. This ensures greater capability and precise monitoring in various environments, helping to identify and mitigate electrical and thermal hazards.
Secondary Safety: Active Backup Protection
For the first time, our 12V 100Ah LiFePO4 battery features active backup protection. It helps to cut off the circuit 40x faster than conventional passive protection when a MOSFET switch fails. So it won't compromise your battery packs.
Brave the Cold for Ice Fishing
For winter sports enthusiasts, like ice fishing, a self-heating LiFePO4 battery is essential. The 12V 100Ah Pro LiFePO4 battery can automatically heat up with a charging current greater than 4A, ensuring safe charging in sub-zero temperatures and providing reliable power for fish finders and other gear.
Robust Power Even in Heatwaves
The new Pro series lithium battery is designed to withstand extreme temperatures, with a fire-resistant casing (UL94 V-0). This ensures enhanced fire protection to safeguard your power supply against potential hazards, especially in remote areas where emergency responses can be delayed.
Performance You Can Count On
With advanced safety features, the Renogy 12V 100Ah Pro extends its performance capabilities while also ensuring a longer battery lifespan, giving you consistent, reliable power.
Over-the-Air Update
Connect your 12V 100Ah Pro battery to the DC Home app via Bluetooth, allowing you to receive upcoming features and improvements, keeping your battery at peak performance.
UL-Listed Cells
The 12V 100Ah Pro battery is equipped with EV-class cells and a comprehensive battery management system, capable of discharging up to 245A for 30 seconds to support heavy loads like air conditioners.
Certified Safety
Renogy's 12V 100Ah Pro LiFePO4 Battery has undergone rigorous testing to meet comprehensive safety standards, ensuring peace of mind and allowing you to live freely, safely, and reliably anywhere.
Dimensional Reference Guide
Before installing the battery, ensure a clearance of 1.97-3.94 inches (5-10 cm) above the battery, and leave at least 7.87 inches (20 cm) on the side with the busbars for optimal installation.
Find the Power That Is Right for You
Connect with Renogy customers.
Go to Power Plus Community
Still have questions?
Ask our specialist
Package Includes
Battery only option
- Pro - 12V 100Ah Lithium Iron Phosphate Battery w/Bluetooth x 1
- Terminal Bolts (M8 x 1.25 x 12 mm) x 2
- Long Terminal Bolts (M8 x 1.25 x 16 mm) x 2
- User Manual x 1
| Renogy 12V 100Ah Pro Series Deep Cycle Lithium Iron Phosphate Battery | |
|---|---|
| ELECTRICAL DATA | |
| Rated Capacity (0.5C, 25℃): 100Ah | Nominal Voltage: 12.8V |
| Energy: 1280Wh | Cycle Life (0.5C/1C, 25℃): 5000 Cycles (80% DOD, 80% EOL) |
| Temperature Parameters | |
| Operation Temperature Range: Charge: -20°C to 55°C (-4°F to 131°F) | Operation Temperature Range: Discharge: -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature Range: -25°C to 65°C / -13°F to 149°F | Operation Relative Humidity: 10% to 95% |
| Charging Parameters | |
| Voltage Range: 10V to 14.8V | Maximum Continuous Charge Current: 100A |
| Mechanical Specifications | |
| Dimension (L x W x H): 268 x 193 x 205 mm / 10.6 x 7.6 x 8.1 in | Weight: 12.2 kg / 26.9 lbs |
| Terminal Bolt Size: M8 x 1.25 x 16 mm | Protection Rating: IP67 |
| Discharging Parameters | |
| Maximum Continuous Discharge Current: 100A | Peak Discharge Current: 245A@30s |
| Certifications | |
| MSDS, UN38.3, FCC, PSE, CE, UKCA: YES | |
| Warranty | |
| 7-year prorated material and workmanship warranty: true | |
1. Can this battery be used in series to build a 24-volt system?
No, Renogy 12V Pro Series Batteries can only be connected in parallel to expand your off-grid power storage, not in series.

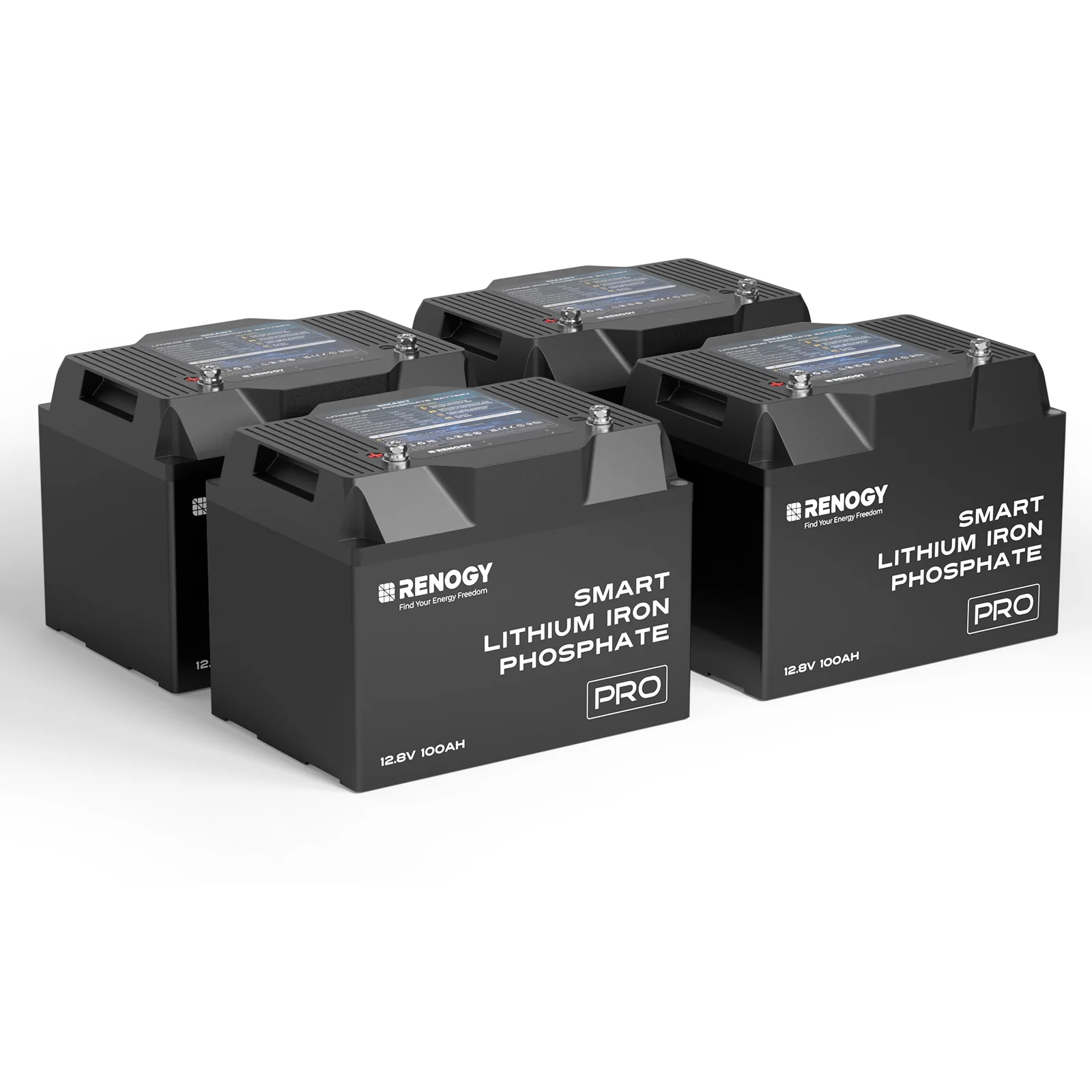

2. How many Renogy 12V 100Ah Pro Series Batteries can I connect at most?
You can connect up to 8 batteries in parallel, allowing you to expand your power capacity to 10.24kWh. Make sure to use batteries of the same model and similar capacity.
3. How does the self-heating of the battery work?
Ensure a stable charge current greater than 4A for each battery in the parallel battery bank. The self-heating function will activate automatically when the battery temperature drops below 41°F (5°C) and will stop once the temperature exceeds 50°F (10°C).
4. How long will the Renogy Pro Series Lithium Iron Phosphate Battery last?
Renogy 12V 100Ah Pro Series Batteries are designed to last for 5000 cycles with a recommended 80% depth of discharge (DOD). These batteries are equipped with a double active safety system, UL94 V-0 fire-retardant casing, IP67 protection, and a rugged design to provide safe and reliable power throughout the year.
5. What does the double active safety system mean?
The double active safety system in the 12V 100Ah Pro LiFePO4 Battery combines 60+ Battery Management System (BMS) protections with active backup protection to prevent electrical and other potential hazards, ensuring the safety of both you and your system.
6. What is the active backup protection?
Active backup protection is a new feature in Renogy's deep-cycle LiFePO4 battery, designed to respond quickly to potential risks like overvoltage and overheating. It uses self-control fuses that activate instantly, unlike conventional fuses that take longer, offering fast protection even if other components fail.
7. Can I pair a Bluetooth Module for this battery to monitor the battery status on my phone?
No, you don’t need a separate Bluetooth module. This battery already has Bluetooth built in. Simply download the DC Home app to pair it with your battery for real-time monitoring. Alternatively, you can also track battery status using a 500A Battery Monitor With Shunt (sold separately).
8. How do I recharge my LiFePO4 batteries?
You can recharge your LiFePO4 batteries using solar power, a DC-DC battery charger, or an AC-DC charger. We recommend using a solar charge controller/charger that is compatible with lithium iron phosphate batteries for optimal charging.
9. Is it compatible with Renogy ONE?
Yes, this battery is compatible with Renogy ONE M1 & Core, allowing for easy integration and monitoring in your off-grid power system.
10. Can this battery be used in series to build a 24-volt system?
No. Renogy 12V Pro Series Batteries can be connected in parallel (Up to 8P) to expand your off-grid power storage.
More questions about your off-grid power system? Learn more from Renogy Learning Center!
 |
 |
