20A/30A/40A/60A/100A ANL Fuse Set w/ Fuse
Description

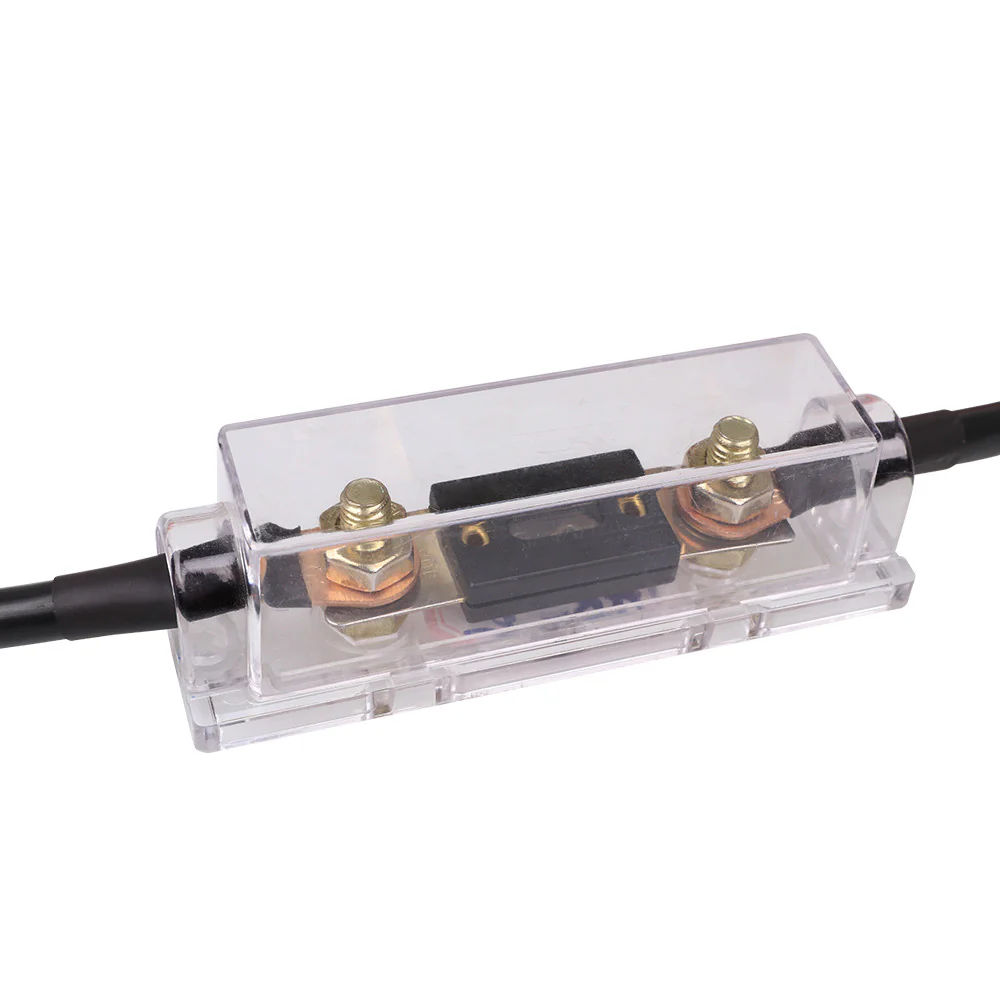

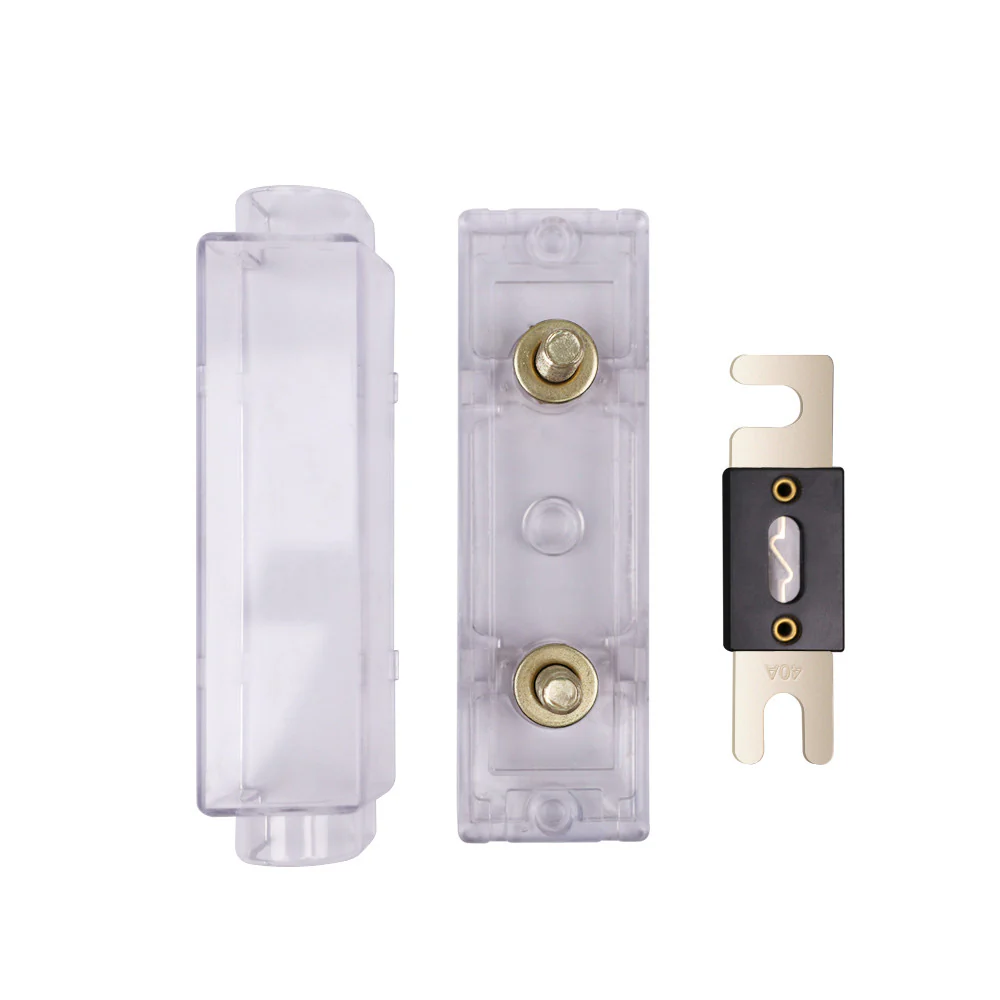

The Renogy ANL fuse will protect the charge controller, wire, and battery from over-current. This product is composed of alloy and brass copper materials and comes with a clear protective non-conductive resistant cover. This fuse set is ideal for custom installation.

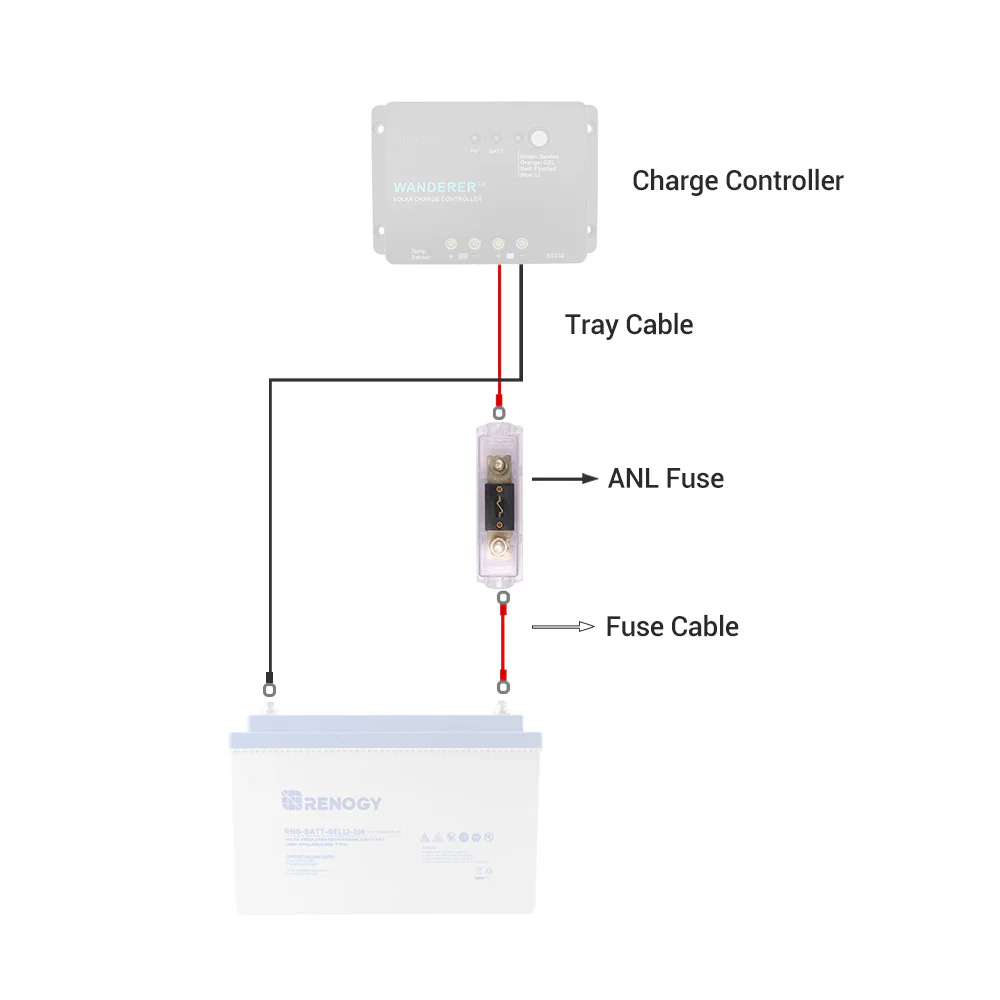

The 40A DC Protection Kit is suitable for: 40A MPPT/PWM Charge Controller，40A DC-DC Battery Charger.
If you have any questions regarding this product, please submit a case !
Key Features
Ease of use- Visible through clear window to easily identify open status
- For use with RENOGY ANL Fuse Block
- RoHS compliant
- Compatible with all the 20/30/40/60/100 ANL fuses
- Gold/Nickel plated terminal contact for corrosion resistance
- Ignition protected
Package Includes
|
Renogy 20A/30A/40A/60A/100A ANL Fuse Set w/ Fuse
1 x
|
| Renogy 20A ANL Fuse Set (Included Fuse) | |
|---|---|
| Current Rating: 20A | Voltage Rating: 72V |
| Interrupt Capacity: 180A (48V) |
| Renogy 30A ANL Fuse Set (Included Fuse) | |
|---|---|
| Current Rating: 30A | Voltage Rating: 72V |
| Interrupt Capacity: 200A (48V) |
| Renogy 40A ANL Fuse Set (Included Fuse) | |
|---|---|
| Current Rating: 40A | Voltage Rating: 72V |
| Interrupt Capacity: 240A (48V) |
| Renogy 60A ANL Fuse Set (Included Fuse) | |
|---|---|
| Current Rating: 60A | Voltage Rating: 72V |
| Interrupt Capacity: 360A (48V) |
| Renogy 100A ANL Fuse Set (Included Fuse) | |
|---|---|
| Current Rating: 100A | Voltage Rating: 72V |
| Interrupt Capacity: 500A (48V) |
| Renogy 40A Fuse Kit Specifications | ||
| Cable | Cable Size | 8AWG |
| Testing Standard | UL1015 | |
| Rated Voltage | 600VDC | |
| Operating Temperature | ＜105℃ | |
| Terminal Type | 5/16 Inch Ring Lug | |
| Length | 0.65Ft / 198 mm | |

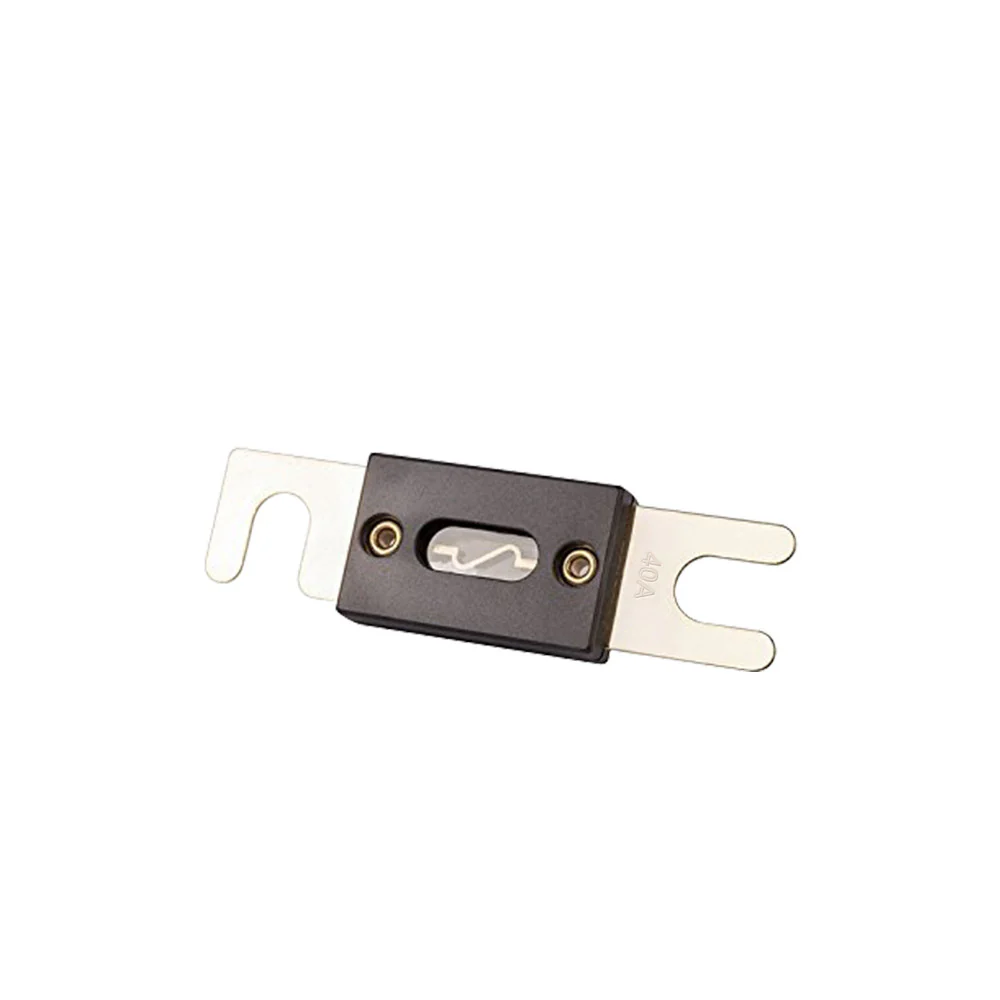

| Fuse | Fuse Type | ANL Fuse |
| Rated Voltage | 32VDC | |
| Rated Current | 40A | |
| Operating Temperature | -40 - 125℃ | |
| Dimension | 124 x 37.6 x 37.5mm / 4.88 × 1.48 × 1.48 in | |
| Warranty | 1-Year | |

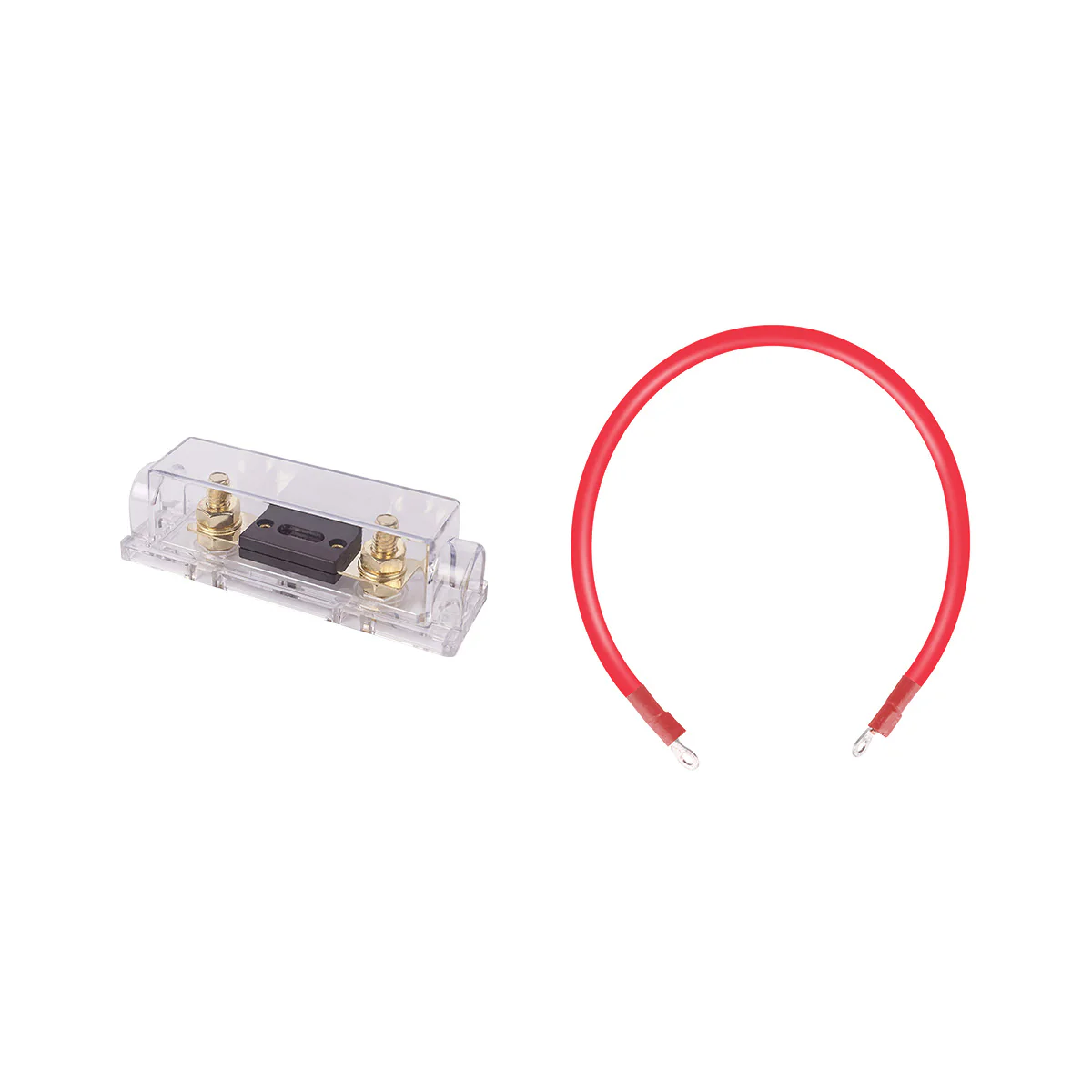

| Package Contents | 1.40A ANL Fuse 2.8AWG 0.65Ft Fuse Cable 3.Installation Guide |
|
Warranty Information
| Panels |
25-year transferable power output warranty: 5 year/95% efficiency rate, 10 year/90% efficiency rate, 25-year/80% efficiency rate 5-year material and workmanship warranty |
| Accessories | 1-year material warranty |
Certification
 |
 |
 |
 |
